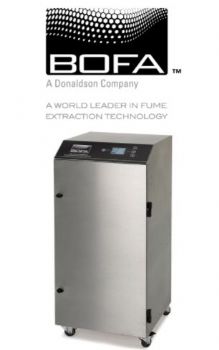

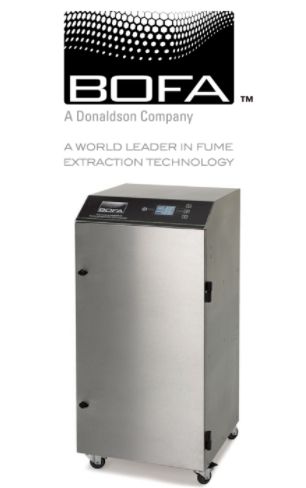

ad 1000 iq

laser--激光烟雾净化系统

high performance laser fume extraction system for applications in

laser marking, coding and engr**ing.适用于激光打标、编码和雕刻等

应用领域的高性能烟雾净化系统。

bofa’s ad 1000 iq high end laser extraction system combines extremely large filter

capacity with high airflow and pressure rates, m**ing it the ideal choice for he**y duty

applications that generate large amounts of particulate and gaseous organic

compounds. bofa旗下的ad 1000 iq高端智能烟雾净化系统拥有极其强大的过滤能力，气

压流量速率高，对于产生大量颗粒物和气态有机化合物的重载应用场合，是非常理想的选择

performance is enhanced with the inclusion of several features including bofa’s

patented deeppleat duo pre filter and the acclaimed iq operating system. these t**e

performance and safety parameters to a new level and ensures that maintenance,

downtime and ownership costs are kept to a minimum.集成了bofa的深度褶皱双预过滤

系统专利技术及 广受赞誉的iq智能操作系统等多种功能，性能大大提升，使净化性能和安全

指标提升到一个新高度，并将停机维保时间和运行成本降到最低水平。

technical specification

技术参数

1. iq display iq显示屏

2. on / off switch 开关

5. castors 脚轮

6. door hinge 门铰链

9. motor cooling inlet

冷却风入口

10. door latch 门锁

3. power cable 电源线

7. hose inlet connection

-125mm 进风口

11. motor cooling outlet

冷却风出口

4. signal / interface cable 信号线接口

8. exhaust outlet 出风口

12. standby button 待机按钮

intelligent (iq) operating system

iq智能操作系统

our award-winning intelligent (iq) operating system combines performance

and safety with high effiffifficiency of extraction.

bofa iq智能操作系统性能优越，操作安全，净化效率高，

可有效延长滤芯使用寿命。

cfm or m3 /hr

point

run time

internal unit

temperature

condition

condition

the revolutionary iq operating system performs at two distinct levels.

where operators benefit from the ease of operation and clarity of real time

information, the system also provides a cache of analytical data enabling

users to download performance and operating parameters for evaluation

purposes. iq智能操作系统革新技术包括两个独特的性能：一个为

简易操作及实时状态显示界面，另一个为隐藏式数据分析界面，

允许用户下载设备参数及操作运行参数用于评估分析。

the iq operating system helps maintain and maybe even enhance

productivity through reduced "downtime" maintenance.

iq智能操作系统可有效减少“停机维保”时间，提高生产效率。

the iq operating system can monitor the status of both the pre filter and

combined (main) filter. pre blockage warnings provide operators with

ample time to prepare for a change. when a filter change is needed the

system is able to indicate exactly which filter requires change. it

significantly reduces the uncertainty and time to undert**e a filter

replacement. iq智能操作系统可以同时监控预过滤芯和组合主过

滤芯的状态。堵塞预报警给操作人员提供了充足的备件准备时

间，而且可明确指示哪个滤芯需要更换，大大将降低了不确定性

和滤芯更换时间。

the iq also provides the facility to download operation data either locally

or remotely for evaluation, which reduces or even eliminates the service

time and cost. iq智能操作系统提供了数据下载功能，供本地或远

程评估，大大减少了高昂费时的上门服务成本。

the iq provides a series of visual, audible and electrical outputs to ensure

that all events are clearly communicated and that timely and appropriate

intervention can be undert**en to maximise production uptime. iq智能

操作系统提供一系列可视、声音及电子信号报警，确保所有故障

能够清晰传达并得到及时恰当的处理，实现生产时间最大化。
